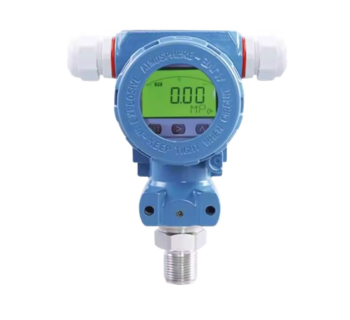

Pressure Transmitter with Display

The PTD-200 Pressure Transmitter with Display from Burak Metering Pvt. Ltd. is a smart industrial pressure transmitter designed for accurate and reliable pressure measurement in gas, liquid, and steam applications. Utilizing a high-performance diffused silicon piezoresistive sensor, it provides sta…

Pressure Range: -1 to 1000 Bar Accuracy: ±0.5% FS Sensor: Diffused Silicon Output: 4-20 mA with Optional HART Display: Integral LCD Enclosure: IP66 Die-Cast Aluminium

Description

The PTD-200 Pressure Transmitter with Display from Burak Metering Pvt. Ltd. is a smart industrial pressure transmitter designed for accurate and reliable pressure measurement in gas, liquid, and steam applications. Utilizing a high-performance diffused silicon piezoresistive sensor, it provides stable, repeatable measurements with excellent long-term performance.

The transmitter converts pressure into a standard 4-20 mA analog output, ensuring seamless integration with PLC, DCS, SCADA, and other industrial automation systems. An optional HART communication protocol allows for remote configuration and diagnostics. The integrated LCD display provides clear local indication of process pressure, simplifying monitoring and maintenance.

Built with SS316L wetted parts and housed in a rugged IP66 die-cast aluminium enclosure, the PTD-200 is engineered to perform reliably in harsh industrial environments. With a wide pressure measuring range, fast response time, and weatherproof/flameproof options, it is an ideal solution for critical pressure monitoring applications across various industries.

Features

Pressure Range from -1 Bar to 1000 Bar

Diffused Silicon Piezoresistive Sensor

Accuracy up to ±0.5% FS

4-20 mA Output with Optional HART

Integral LCD Display

IP66 Die-Cast Aluminium Enclosure

SS316L Wetted Parts

Weatherproof & Flameproof (Optional)

Fast Response Time ≤10 ms

Benefits

High Measurement Accuracy

Wide Pressure Range

Fast Response Time

Excellent Long-Term Stability

Easy PLC, DCS & SCADA Integration

Suitable for Gas, Liquid & Steam

Rugged IP66 Industrial Design

Corrosion-Resistant SS316L Wetted Parts

Low Maintenance & Long Service Life

Ideal for Critical Process Applications

Mechanical Specifications

Enclosure Die Cast Aluminium LM6

Protection IP66

Wetted Parts SS316L Stainless Steel

Process Connection 1/4", 1/2" BSP / NPT

Cable Entry M20 × 1.5 / ½" NPT

Mounting Direct Process Mount

Transmitter Specifications

Sensor Type

Diffused Silicon / Piezoresistive

Pressure Range

-1 Bar to 1000 Bar

Accuracy

±0.5% FS

Output Signal

4-20 mA, 2-Wire

Communication

HART (Optional)

Power Supply

12–36 VDC

Response Time

≤10 ms

Long-Term Stability

±0.1% FS/Year

Ambient Temperature

-20°C to +85°C

Display

Integral LCD

Process Parameters

Process Media

Gas, Liquid & Steam

Process Temperature

-20°C to +85°C

Wetted Material

SS316L

Pressure Type

Gauge, Absolute & Vacuum (Optional)

Applications

Process, Utility & Equipment Pressure Monitoring
