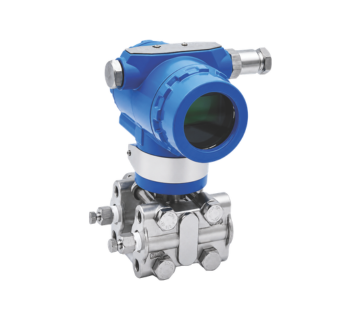

image of DP transmitter

image of DP transmitter

Differential Pressure Transmitter

The DPT-1000 Differential Pressure Transmitter from Burak Metering Pvt. Ltd. is a high-performance smart transmitter designed for precise differential pressure measurement in industrial process applications. Engineered with advanced sensor technology, it delivers exceptional accuracy and long-term …

Measurement: Differential Pressure Range: 0–10000 mmWC Accuracy: ±0.075% of Span Output: 4-20 mA with HART Media: Gas, Liquid & Steam Enclosure: IP66 Die-Cast Aluminium Wetted Parts: SS316L Stainless Steel

Description

The DPT-1000 Differential Pressure Transmitter from Burak Metering Pvt. Ltd. is a high-performance smart transmitter designed for precise differential pressure measurement in industrial process applications. Engineered with advanced sensor technology, it delivers exceptional accuracy and long-term stability for monitoring flow, level, filter blockage, and pressure across liquids, gases, and steam.

The transmitter provides a standard 4-20 mA, 2-wire output with HART communication, enabling seamless integration with PLC, DCS, and SCADA systems. Its robust SS316L wetted parts and IP66 die-cast aluminium enclosure ensure reliable operation in harsh industrial environments.

With fast response time, excellent overpressure capability, and low maintenance, the DPT-1000 is an ideal solution for demanding process industries requiring accurate and reliable differential pressure measurement.

Features

Differential Pressure Measurement

Accuracy up to ±0.075% of Span

Range up to 0–10000 mmWC

4-20 mA, 2-Wire with HART

IP66 Die-Cast Aluminium Enclosure

SS316L Wetted Parts

Fast Response ≤100 ms

Long-Term Stability ±0.1% URL/Year

Benefits

High Measurement Accuracy for reliable process control.

Stable Long-Term Performance with minimal drift.

Suitable for Gas, Liquid & Steam applications.

Supports Flow, Level & Filter Monitoring using a single transmitter.

Easy Integration with PLC, DCS & SCADA via 4-20mA and HART.

Rugged IP66 Enclosure for harsh industrial environments.

Corrosion-Resistant SS316L Wetted Parts for extended service life.

Fast Response Time for real-time process monitoring.

Low Maintenance with dependable operation.

Ideal for Critical Process Applications across multiple industries.

Mechanical Specifications

Enclosure Die Cast Aluminium

Protection IP66

Wetted Parts SS316L

Process Connection 1/4-18 NPT (Female)

Electrical Connection M20 × 1.5 / ½" NPT

Transmitter Specifications

Measuring Principle

Differential Pressure

Measuring Range

0–10000 mmWC

Accuracy

±0.075% of Span

Output Signal

4-20 mA, 2-Wire

Communication

HART

Power Supply

12–36 VDC

Response Time

≤100 ms

Stability

±0.1% URL/Year

Ambient Temperature

-40°C to +85°C

Process Parameters

Process Media

Liquid, Gas & Steam

Process Pressure

As per Model Selection

Process Temperature

-40°C to +85°C
