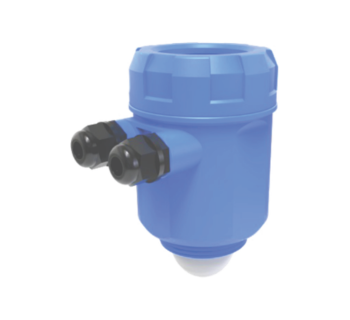

image of RT2000 Radar level transmitter

image of RT2000 Radar level transmitter

Radar Level Transmitter

The RT-2000 Radar Level Transmitter from Burak Metering Pvt. Ltd. is a compact, non-contact level measurement instrument designed for accurate and reliable monitoring of liquids in industrial tanks and vessels. Operating on 80 GHz FMCW radar technology,

Technology: 80 GHz Radar Body: ABS Plastic Range: 30 m Accuracy ±3 mm Output: 4-20 mA & RS485 Display: LCD Protection: IP66

Description

The RT-2000 Radar Level Transmitter from Burak Metering Pvt. Ltd. is a compact, non-contact level measurement instrument designed for accurate and reliable monitoring of liquids in industrial tanks and vessels. Operating on 80 GHz FMCW radar technology, it provides stable measurements regardless of vapour, dust, temperature, or pressure variations.

Featuring a compact IP66 enclosure and 4-20 mA output with RS485 Modbus RTU, the RT-2000 integrates easily with PLC, DCS, and SCADA systems. Its maintenance-free operation and high measurement accuracy make it an ideal solution for water treatment, chemical processing, storage tanks, and utility applications.

Features

80 GHz FMCW Radar

Non-Contact Measurement

Measuring Range up to 30 m

Accuracy ±3 mm

LCD Display

4-20 mA & RS485 Modbus RTU

IP66 Protection

Maintenance-Free

Benefits

High Accuracy

Maintenance-Free

No Contact with Process

Reliable in Vapour & Dust

Easy Installation

PLC & SCADA Ready

Long Service Life

Low Maintenance

Mechanical Specifications

Enclosure ABS

Protection IP66

Process Connection Threaded

Cable Entry PG Gland

Installation Installation

Transmitter Specifications

Measuring Principle

80 GHz FMCW Radar

Measuring Range

0.15–30 m

Accuracy

±3 mm

Output

4-20 mA, 2-Wire

Communication

RS485 Modbus RTU

Display

LCD

Power Supply

18–26 VDC

Process Parameters

Process Media

Liquids

Measuring Type

Non-Contact

Process Temperature

-40°C to +80°C
