Vortex flow meter with Triclover connection

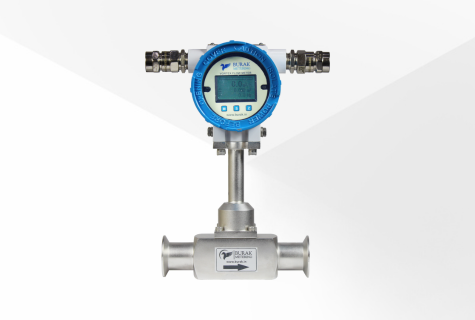

The BX-6000-E Vortex flow meter with a Triclover connection is a specialized instrument designed for accurate flow measurement while incorporating the convenience and sanitary benefits of a Triclover connection. This configuration caters to industries that demand precise flow monitoring in hygienic environments, such as pharmaceuticals, food and beverage, and biotechnology.

The construction of a vortex flow meter with a Triclover connection includes several essential components:

Body/Housing: Typically made from durable materials like stainless steel, the body encases the internal components while providing structural integrity. It's designed to meet sanitary standards and accommodate the Triclover connection for secure, leak-free installation.

Bluff Body or Shedder Bar: Positioned within the flow path, this component creates vortices as the fluid passes through. These vortices are proportional to the flow rate and are detected to determine the flow velocity.


Sensor/Transducer: Often located behind the bluff body, the sensor measures the vortices' frequency or pressure fluctuations caused by the vortex shedding. This information is converted into flow rate measurements.


Triclover Connection: Specifically designed for hygienic applications, the Triclover connection ensures a secure and sanitary seal between the flow meter and the piping system. It allows for easy installation, maintenance, and cleaning without compromising cleanliness.

Electronic System/Transmitter: The electronics module processes signals from the sensor or transducer and translates them into readable flow data. It may include a display for real-time flow rates and communication interfaces (such as 4-20mA, RS485) for integration with external systems.


Inlet/Outlet Ports: Engineered to minimize turbulence and maintain a smooth flow profile, these ports enable fluid entry and exit while ensuring compatibility with the Triclover connection for a sanitary interface.


Constructing a vortex flow meter with a Triclover connection emphasizes precision engineering, materials suitable for hygienic environments, and a design that complies with strict sanitary standards. This configuration allows for accurate flow measurement while prioritizing cleanliness, ease of installation, and maintenance in industries where maintaining a sterile environment is critical.
