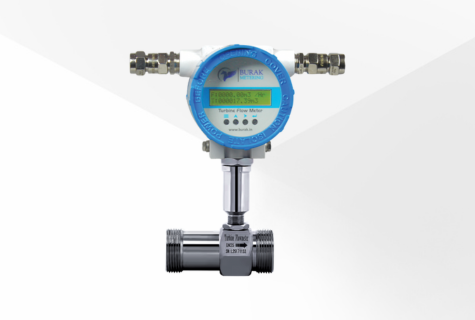

Turbine flow meter with screwed connection

A turbine flow meter is a device used to measure the flow rate of liquids or gases by employing a rotating turbine within a pipe. As the fluid moves through the meter, it causes the turbine to spin, and the speed of rotation is directly proportional to the flow velocity. This velocity data is then converted into volumetric flow rate measurements. These meters are often used in various industries due to their accuracy, reliability, and ability to handle different types of fluids.


The BR-4000-V Turbine flow meters with thread end and their key components:


Housing: Crafted typically from resilient materials such as stainless steel or robust alloys, the housing serves as a protective enclosure for the internal mechanisms, imparting sturdiness to the meter's framework.


Turbine Assembly: At the heart of this meter lies the turbine assembly, comprised of rotor blades affixed to a shaft within the flow's path. As the fluid traverses the meter, it propels the turbine's rotation, with the configuration of these blades dictating the meter's sensitivity and measurement span.


Bearings: Precision bearings cradle the turbine shaft, curbing friction and allowing the rotor to rotate unimpeded. This configuration minimizes wear and tear while upholding measurement accuracy.


Pickup Sensor: Situated beyond the flow path, the pickup sensor discerns the turbine's rotational speed. It can take the form of a magnetic or optical sensor, generating signals that correspond to the turbine's movements, subsequently translated into flow rate measurements.


Electronic System/Transmitter: This vital component processes signals from the pickup sensor, converting them into readable flow data. Often equipped with a display screen showcasing real-time flow rates and cumulative totals, the transmitter also interfaces with external systems via diverse outputs like 4-20mA, RS485, or pulse outputs.


Inlet/Outlet Ports: These ports facilitate the entry and exit of the fluid undergoing measurement. Engineered to minimize turbulence, they ensure a seamless flow through the meter.


The construction of turbine flow meters underscores meticulous engineering and materials capable of withstanding the conditions within the measured fluid and its surrounding environment. Their design guarantees dependable and precise flow measurements, catering to a wide spectrum of industries and applications.
