Turbine Flow Meter with Triclover Connection

A turbine flow meter is a device used to measure the flow rate of liquids or gases by employing a rotating turbine within a pipe. As the fluid moves through the meter, it causes the turbine to spin, and the speed of rotation is directly proportional to the flow velocity. This velocity data is then converted into volumetric flow rate measurements. These meters are often used in various industries due to their accuracy, reliability, and ability to handle different fluids.

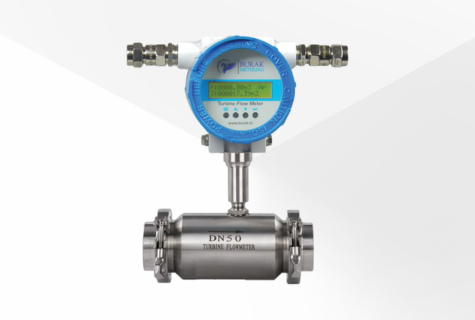

The BR-4000-E Turbine flow meters with Tri clover end and their key components:


The construction of a turbine flow meter with a tri-clover connection involves specific components tailored for precision flow measurement in various industries. This design integrates the accuracy of a turbine meter with the convenience of a tri-clover connection, often favored for its sanitary and secure seal in fluid handling systems.


Critical components of a turbine flow meter with Tri clover connection include:


Housing: Typically crafted from robust materials like stainless steel or alloys compatible with the measured fluid. The housing provides structural integrity and encases internal components, safeguarding them from external influences.

Turbine Assembly: The central element comprises rotor blades mounted on a shaft within the flow path. As the fluid passes through the meter, it propels the turbine to rotate, and the rotational speed correlates directly with the flow velocity. Blade configuration determines sensitivity and measurement range.

Bearings: Precision bearings support the turbine shaft, ensuring smooth rotation and minimizing friction-induced inaccuracies. This setup preserves measurement precision and extends the meter's lifespan.

Tri-Clover Connection: Specifically designed for sanitary applications, the Tri-Clover connection provides a secure, leak-free seal between the meter and the piping system. Its design facilitates quick assembly and disassembly, which is crucial for maintenance and cleaning in industries with stringent hygiene requirements.

Pickup Sensor: Positioned to detect the turbine's rotation, the pickup sensor generates signals (magnetic or optical) proportional to the turbine's speed. These signals are converted into flow rate measurements, increasing the meter's accuracy.

Electronic System/Transmitter: Processing signals from the pickup sensor, this component converts them into readable flow data. It may incorporate a display for real-time flow rates and cumulative totals. Additionally, it offers interface options (e.g., 4-20mA, RS485) for external communication.

Inlet/Outlet Ports: Engineered to minimize turbulence, these ports allow fluid entry and exit. The Tri-Clover connection ensures a sanitary and reliable seal at these entry points.

The construction of turbine flow meters with Tri Clover connections prioritizes accuracy, durability, and ease of maintenance. Their design caters to pharmaceuticals, food and beverage, and biotechnology industries, where cleanliness and precision in fluid measurement are paramount. This configuration ensures reliable flow measurement while adhering to strict sanitary standards.
