Electromagnetic Flow Meter with remote display

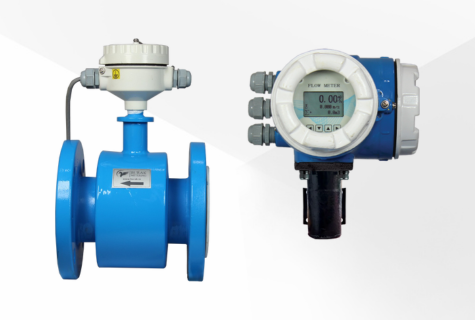

A BE-5000-GR Electromagnetic flow meter with a remote mount display shares similarities with integral display mount meters but incorporates a remote display unit for monitoring and managing flow data at a distance. Here’s an overview of its construction:


Remote Display Unit: Unlike integral display mount meters, these devices feature a remote display unit. This display unit is detached from the flow sensor and connected via cables or wireless communication. It provides a user-friendly interface to view, analyze, and manage flow data. The remote aspect allows flexibility in installation locations, such as control rooms or areas accessible for monitoring.


Mounting Configuration: The design incorporates a mounting configuration similar to integral display mount meters, ensuring secure attachment of the flow sensor to the pipeline to maintain stability and accuracy in flow measurement.


Materials and Construction: Construction materials prioritize durability and corrosion resistance, often employing stainless steel or other suitable materials to withstand the fluid's properties and environmental conditions.


Electromagnetic Flow Sensor: The core component remains the electromagnetic flow sensor. It is a non-intrusive device installed within the pipeline to measure the flow of conductive fluids. By generating a magnetic field and measuring the induced voltage resulting from fluid flow, it accurately determines the flow rate.


Sealing and Protection: Robust sealing mechanisms and protective measures shield sensitive electronic components from environmental factors, ensuring the reliability and longevity of the flow meter.


Flange Connection: Similar to integral display mount meters, these flow meters come equipped with flanged ends that facilitate easy installation and connection to the pipeline. The flanges are designed to industry standards for compatibility with various piping systems.


Electronics and Signal Processing: Similar to integral display mount meters, these flow meters contain electronic components responsible for signal processing, data interpretation, and communication capabilities. The remote display unit is designed to receive and display data transmitted from the flow sensor.


Calibration and Accuracy: Rigorous calibration processes are implemented during manufacturing to ensure accurate flow measurement across varying operating conditions. Manufacturers may provide calibration certificates or guidelines to maintain accuracy over time.


Maintenance and Serviceability: Design considerations often focus on easy maintenance, allowing access to internal components for servicing or calibration without causing significant disruptions to the fluid system's operation.


Remote display mount electromagnetic flow meters find applications in industries where remote monitoring and control are essential, offering the advantage of flexibility in display placement while maintaining accurate flow measurement capabilities.
