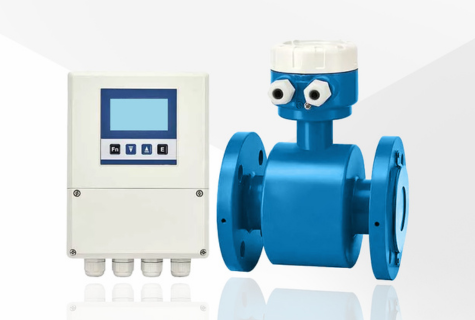

BE-5500-R: Electromagnetic Flow Meter with Remote Display

Product Description

The BE-5500-GR Remote Mount Slurry Electromagnetic Flow Meter is expertly designed for precise and reliable measurement of slurry media in demanding industrial applications. Its rugged construction and remote-mount capability ensure flexibility and optimal performance in challenging environments.

Key Construction Features

Sensor Body
Material: The flow sensor is crafted from high-strength stainless steel or carbon steel, offering superior corrosion and abrasion resistance.
Lining: Abrasion-resistant liners, such as PTFE, polyurethane, or rubber, are used to withstand abrasive slurry media like ore slurry, coal-water slurry, and mud.
Flanged Connections: Standardized flanged ends ensure easy installation and secure connection to pipeline systems.

Electrodes
Material: Made from durable materials such as Hastelloy C, titanium, or tantalum to resist corrosion and wear in aggressive process conditions.
Design: Precisely positioned for consistent and accurate flow measurement, even in liquid-solid two-phase flows.

Remote Transmitter
Construction: The transmitter is housed separately in a robust, weatherproof enclosure, allowing flexible installation away from the pipeline.
Material: The housing is made of die-cast aluminum or stainless steel for strength and durability.
Protection: IP65 or higher-rated enclosures to protect against dust, moisture, and harsh environmental conditions.

Output Options
Standard 4-20mA HART Output: Provides precise signal transmission for seamless integration into industrial control systems.
Optional RS485 Modbus: Supports advanced communication and data exchange with SCADA and other automation platforms.

Earthing Rings
Purpose: Ensures a stable reference point for accurate and interference-free flow measurement.
Material: Constructed from corrosion-resistant stainless steel or other durable alloys to withstand harsh process environments.

Cable Connections
Shielded Cables: High-quality shielded cables connect the sensor and transmitter, ensuring signal integrity and minimizing electromagnetic interference (EMI).
Flexible Lengths: Allows for remote mounting at distances suitable for various installation layouts.

Mounting Options
Sensor: Can be mounted horizontally or vertically in the pipeline to suit process requirements.
Transmitter: Flexible placement options, enabling installation in a more accessible or safer location for operation and maintenance.

Durability and Reliability
The BE-5500-R is built to endure harsh industrial environments, with materials and components designed to handle:

High solid concentrations (up to 80% in ore pulp).

Abrasive and corrosive slurry media.

Extreme temperature and pressure variations.

Features

High concentration of measured medium: multi-frequency square wave excitation mode to ensure the accuracy and sensitivity of measurement.

Fast response speed: response speed ≥0.8s, with damping coefficient adaptive capability.

Low conductivity requirement: less affected by medium viscosity, temperature, pressure, density, etc., it can measure liquids with a conductivity of 2μS/cm.

Strong anti-interference ability: unique noise processing technology and digital filtering can filter out interference caused by dirt attached to pipes and electrodes.

Rich display content: can display total amount, instantaneous flow, flow rate, percentage flow, etc.
