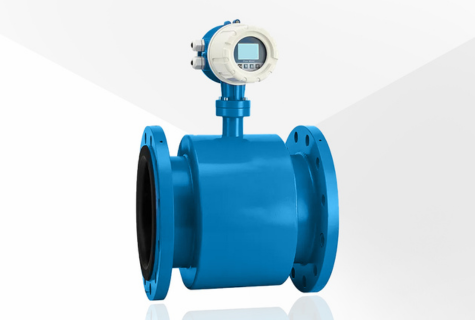

BE-5500-G: Electromagnetic Flow Meter with Integral Display

Product Description

The BE-5500-G Slurry Electromagnetic Flow Meter is meticulously engineered to meet the demanding requirements of slurry media measurement. Its robust construction ensures durability, precision, and reliable performance in challenging industrial environments. Below are the key components and their construction details:

Key Construction Features:

Sensor Body
Material: The flow meter's body is constructed from high-grade stainless steel or carbon steel, providing excellent corrosion and wear resistance.
Lining: Equipped with abrasion-resistant liners made from materials such as PTFE, polyurethane, or rubber, ensuring durability and compatibility with abrasive slurry media.
Flanged Ends: Standard flanged connections are designed for secure installation and compatibility with various pipeline systems.

Electrodes
Material: Electrodes are made of high-grade materials such as Hastelloy C, titanium, or tantalum, chosen for their corrosion and abrasion resistance.
Design: Strategically positioned to maintain accurate measurement even in liquid-solid two-phase flows.

Integral Display
User-Friendly Interface: The integral display is housed in a robust, weatherproof enclosure, providing real-time monitoring of key parameters such as total flow, instantaneous flow, flow rate, and percentage flow.

Material
The enclosure is typically made of die-cast aluminum or stainless steel, ensuring durability in harsh industrial environments.
Protection: IP65 or higher-rated enclosures for protection against dust and water ingress.

Output Options
4-20mA HART Output: The flow meter includes a standard 4-20mA HART output for seamless integration into industrial automation systems.
Optional RS485 Modbus: An RS485 Modbus communication port is available for advanced connectivity and integration with SCADA or other control systems.

Earthing Rings
Purpose: Installed to provide a stable reference point, ensuring accurate and interference-free measurement.
Material: Made from stainless steel or other corrosion-resistant materials to withstand harsh process conditions.

Mounting Options
Compact Design: The integral design combines the sensor and transmitter into a single unit, reducing installation complexity.
Flexible Installation: Can be mounted horizontally or vertically, depending on pipeline orientation and process requirements.

Durability and Reliability
The construction of the slurry electromagnetic flow meter is optimized for high-wear environments, with materials and components designed to withstand: High concentrations of solids (up to 80% in ore pulp).
Abrasive and corrosive slurry media.

Features

High concentration of measured medium: multi-frequency square wave excitation mode to ensure the accuracy and sensitivity of measurement. Fast response speed: response speed ≥0.8s, with damping coefficient adaptive capability.

Low conductivity requirement: less affected by medium viscosity, temperature, pressure, density, etc., it can measure liquids with a conductivity of 2μS/cm.

Strong anti-interference ability: unique noise processing technology and digital filtering can filter out interference caused by dirt attached to pipes and electrodes.

Rich display content: can display total amount, instantaneous flow, flow rate, percentage flow, etc.
