Multivariable Transmitter

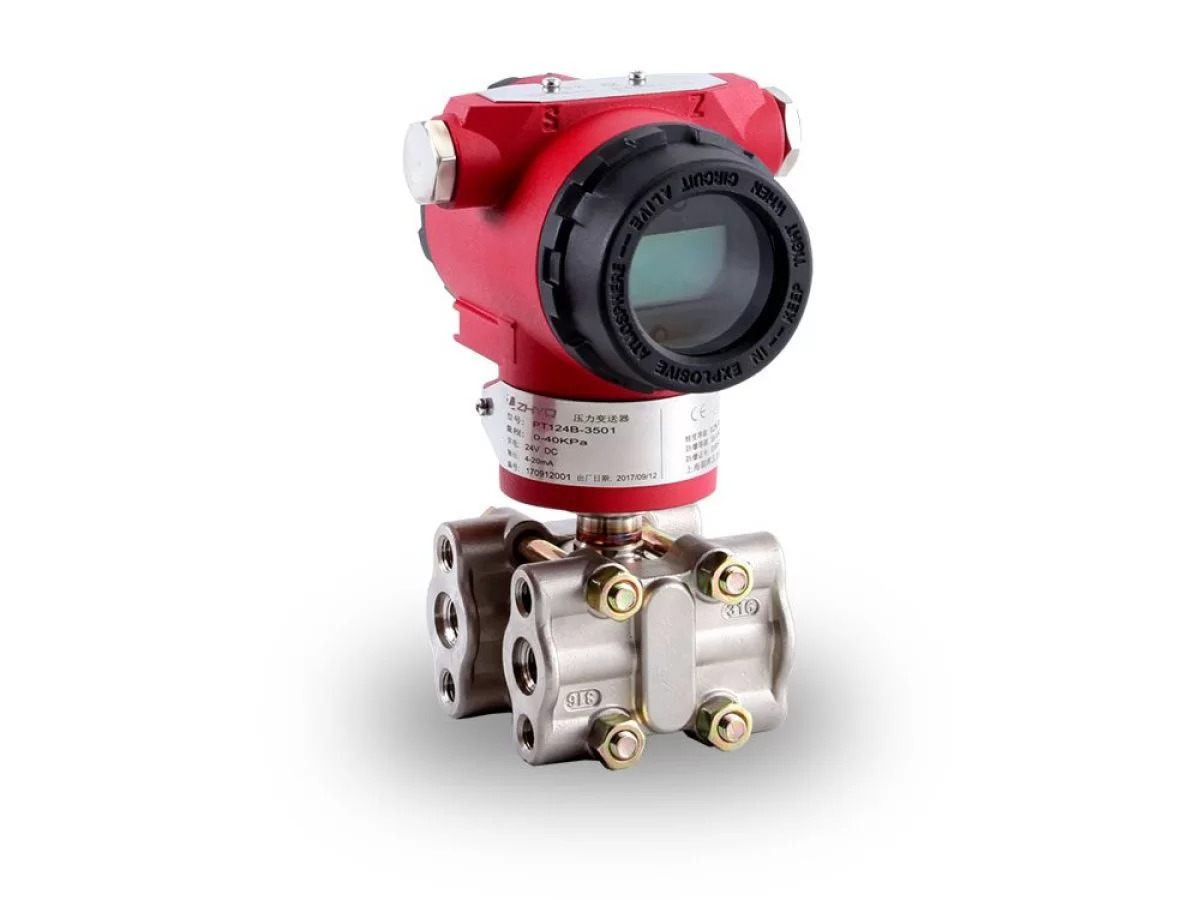

The BMVT-1000 Multivariable Transmitter is an advanced 3-in-1 precision instrument designed for differential pressure flow measurement applications. It simultaneously measures Differential Pressure (DP), Static Pressure (SP), and Process Temperature through an external PT100 ohm RTD sensor (4-wire), providing all variables required for accurate, real-time compensated mass flow calculation — from a single device and a single process connection.

The BMVT-1000 integrates seamlessly with popular third-party flow computers via RS-485 serial output, making it exceptionally easy to commission into existing flow measurement and control systems. It is ideally suited for natural gas custody transfer, pipeline metering skids, wellhead measurement, and industrial process plant flow applications.

Single-Device 3-in-1 Architecture: A single transmitter replaces three separate field instruments (DP transmitter, static pressure transmitter, and temperature transmitter), reducing installed hardware cost, wiring effort, and ongoing maintenance requirements.


Advanced Sensor Capsule: Accurate filling fluid technology eliminates temperature and static pressure cross-effects on the DP cell. The dual-diaphragm design provides high overload pressure protection for both high and low pressure sides of the capsule.


Wetted Materials: Process-wetted diaphragms available in Hastelloy C or 316L Stainless Steel. Process connections in SS 316 with 1/4-18 NPT(F) for broad piping compatibility.


Transmitter Housing: Die-cast Type 4X Aluminium enclosure, explosion-proof as standard on all models.IP66 weatherproof rating. Two 1/2 NPT(F) cable entry ports.


LCD Display & User Interface: Backlit graphical LCD with 180° rotation for optimum field viewing. Internal status toggle button for field diagnostics. Housing body rotates 180° left or right for piping-orientation flexibility.


External Temperature Input: Accepts a PT100 (100 ohm) RTD sensor on a 4-wire connection for process temperature measurement. The RTD probe assembly (HW5000-RTD) is available as an accessory with 10 ft braided stainless steel cable.
