Coriolis Flow Meters: The Gold Standard for Precision Mass Flow Measurement

Modern industrial processes demand exceptional precision in flow measurement. Critical applications, from chemical reactions to pharmaceutical dosing, hinge upon knowing exactly how much material moves through a system.

Volumetric measurements, however, often prove inadequate. Fluid characteristics like density and viscosity can fluctuate with changes in temperature and pressure, rendering volumetric readings unreliable without constant, often complex, adjustments. This challenge necessitates a more sophisticated approach.

Coriolis flow meter is a definitive answer for direct mass flow measurement. This advanced instrument offers a consistent, highly accurate method to quantify fluid movement. It stands as a cornerstone technology for operations where accuracy cannot be compromised.

This article explores how Coriolis flow meters function, details their numerous benefits, examines potential challenges, and identifies their optimal use across various industries.

How the Coriolis Principle Works

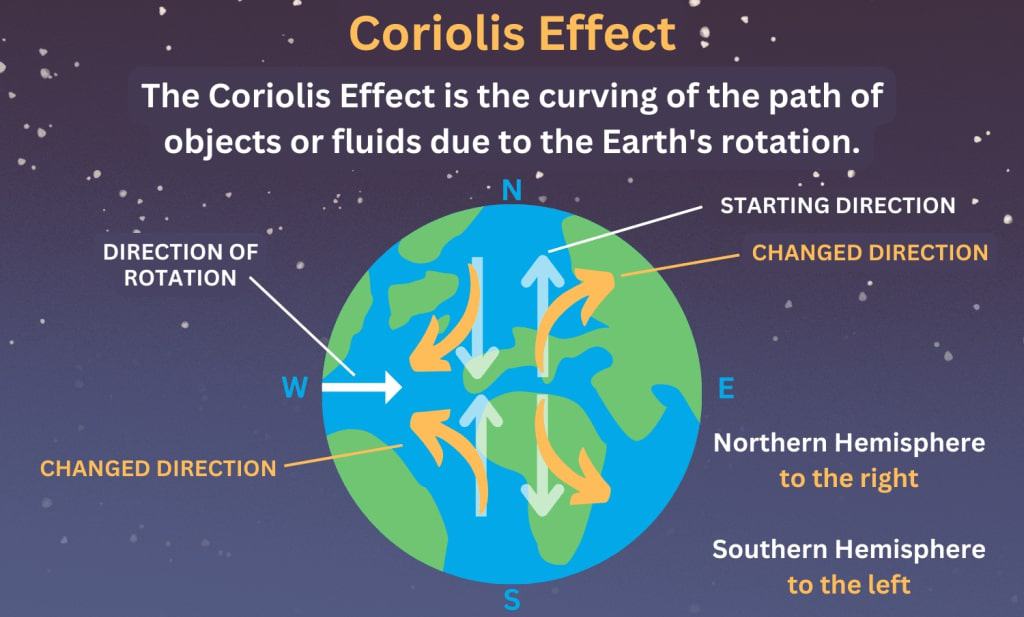

The operational principle behind Coriolis flow meters originates from the Coriolis effect, a phenomenon initially observed by French scientist Gaspard-Gustave de Coriolis. He noted how flowing air experiences a lateral force within a rotating system. This force explains why winds in the Northern Hemisphere typically blow west-to-east during low-pressure conditions, influenced by Earth's rotation.

Inside a Coriolis meter, a specialized tube, or a set of tubes, vibrates continuously. An actuator causes this oscillation, usually at the tube’s natural resonant frequency. Two sensors, positioned along the tube, detect this vibration. When no fluid flows, both sensors register identical deflections at the same moment.

As fluid moves through the oscillating tube, its mass exerts an additional twisting force upon the tube. This inertial effect causes a phase shift—a tiny time lag—between the vibrations detected by the inlet and outlet sensors. A larger phase shift directly corresponds to a higher mass flow rate. An electronics unit then transforms this measured information into a voltage that's proportional to the mass flow rate.

Beyond mass flow, these devices accomplish even more: they measure fluid density. The tube's vibration frequency changes based on the fluid's density; denser fluids cause a lower vibration frequency. Meters also integrate temperature measurement, compensating for variations in tube elasticity and providing process temperature as an additional output signal.

Also, learn What Is Mass Flow Measurement and Why It Matters in Process Industries

Advantages of Coriolis Meters

Coriolis flow meters offer a compelling array of benefits that position them as an industry benchmark:

• Direct Mass Flow Measurement: These instruments are the only flow sensors currently available that directly quantify mass flow rate. This eliminates the need for external calculations based on volumetric flow and fluid properties.
• Insensitivity to Fluid Property Variations: Direct mass measurement remains unaffected by changing fluid characteristics such as density, viscosity, temperature, and pressure. This simplifies operation and enhances reliability.
• Multivariable Measurement from a Single Device: A single Coriolis meter can simultaneously measure mass flow, density, and temperature. From these primary variables, users can derive additional characteristic values, including volumetric flow, solids content, and specific concentrations (e.g., alcohol, Brix, Baume, API, fructose, sewage sludge).
• Exceptional Accuracy and Repeatability: Coriolis meters consistently deliver high accuracy, often cited as the most accurate mass flow devices available. Liquid mass flow typically achieves ±0.1% to ±0.2% of rate, with options for even greater precision at ±0.05% of rate. Repeatability stands at an impressive ±0.05% rate.
• Wide Rangeability: Curved tube designs commonly offer rangeability from 100:1 to 200:1, allowing them to measure exceptionally low flow rates effectively.
• Installation Flexibility: These meters do not require straight inlet or outlet pipe runs and remain unaffected by flow characteristics like turbulence or velocity profiles. They can also handle pulsating flow.
• Low Maintenance Design: With no internal obstructions or moving parts, Coriolis meters experience minimal wear and resist clogging, reducing maintenance needs. Entrained gas or liquid slugs usually will not damage the meter itself.
• Bi-directional Flow Measurement: Operators can configure these meters to quantify flow in both forward and reverse directions.
• Fluid Versatility: Often called "universal meters," they can measure nearly all liquids, gases, slurries, Newtonian and non-Newtonian fluids, compressed gases, and cryogenic liquids. They also handle shear-sensitive fluids and corrosive media through appropriate material selection.

Coriolis Flow Meter's Limitations and Solutions

While Coriolis flow meters offer substantial benefits, users should understand certain inherent characteristics and limitations:

• Size and Flow Rate Constraints: These meters are generally unavailable for very large pipelines. The largest typically feature 6-inch flanges, with maximum flow ratings around 25,000 lb/min (11,340 kg/min) or up to 4,600 tonnes/h. For greater capacities, multiple meters in parallel are necessary.
• Pressure Drop: The measuring tube's cross-section is often smaller than the line pipe to increase fluid velocity and generate sufficient Coriolis forces. This can result in considerable pressure loss across the meter.
  • Solution: Single straight tube designs significantly minimize pressure loss compared to bent tube designs. Manufacturers also employ optimized flow splitter technology in bent-tube designs to reduce pressure impact.
• Cost Considerations: Coriolis meters represent a notable initial investment. However, their cost can compare favorably to, or even be less than, a combination of a volumetric meter and a densitometer required for mass flow determination.
• Susceptibility to External Vibrations: The vibrating sensor tube can be affected by external vibrations at similar frequencies.
  • Mitigation: Identifying sources (e.g., trains, air conditioning) helps. Solutions include relocating the meter, rotating the device, using a larger mass block, or decoupling with dampers and/or flexible tubes.
• Gas Entrainment in Liquids: Gas bubbles or entrained gas within liquids can dampen the regular oscillation of the measuring tube, potentially causing the measurement to fail as the gas content increases.
  • Solution: Entrained Gas Management (EGM™) technology, found in many modern meters, employs powerful control algorithms. This allows the meter to operate stably across a wide range of gas fractions, even during full phase transitions from liquid to gas and back.
• Low-Pressure Gas Measurement: Measuring low-pressure gases (below 150 psig) can be problematic. Low density requires extremely high gas velocities to generate sufficient Coriolis force, leading to potentially prohibitive pressure drops. A minimum gas density (e.g., 4.5 kg/m³) is typically required for proper operation.
• Cavitation: If liquid pressure drops below its vapor pressure across the meter, especially with liquids near the boiling point, cavitation (vapor bubble formation) can occur. This causes a meter malfunction and must be avoided.
• Zero Adjustment Sensitivity: A significant point is the requirement for zero adjustment at operating conditions. An improperly stress-free installation can easily upset this adjustment, particularly affecting accuracy at low flow rates.

Applications of Coriolis Flow Meters

Coriolis flow meters demonstrate their value across a vast array of industries and demanding applications:

• Chemical & Petrochemical Industry: These meters enable precise measurement in catalyst research for optimizing processes. They handle chemicals such as acids, alkalis, dyes, chlorine, and sulfur compounds.
• Life Sciences & Pharmaceutical: Crucial for biotech, medical devices, and pharmaceutical manufacturing. They provide accurate dosing of compounds in medicine development and find use in hygienic applications for ultrapure water.
• Semiconductor Manufacturing: Coriolis flow controllers provide critically accurate and repeatable liquid flow control to vaporizers for novel precursors. They are also used for precision thin-film coating and surface treatments.
• Oil & Gas / Marine: Applications include dosing, loading, and unloading of hydrocarbons. They also measure cryogenic media, such as LNG, and facilitate bunkering, consumption, and emission measurement of marine fuels.
• Food & Beverage: Vital for hygienic applications involving milk, chocolate, jams, ice cream, and solvent extracts. They perform concentration measurements for alcohol in spirits production, fructose, Brix, Baume, and Plato.
• Water & Wastewater Treatment: Effective for measuring sewage sludge concentration.
• Challenging Media: Coriolis meters excel with viscous, aggressive, or shear-sensitive fluids, inhomogeneous liquids, dirty streams, and media containing large amounts of fibers or solids (e.g., bitumen, fats, oils, sludge, pulp, minced meat). They also manage compressed, liquefied, and supercritical gases (e.g., hydrogen, CO₂).
• Critical and Extreme Conditions: They are suitable for custody transfer (certified to standards like OIML, MID, API, AGA), safety instrumented systems (SIS) up to SIL 3, high-accuracy filling and dosing stations, and operations under extreme temperatures (-200 to +400°C / -328 to +752°F) or high pressures (e.g., 400 bar / 5800 psi).

Conclusion

Coriolis flow meters stand as a testament to advanced engineering, offering an unparalleled solution for industrial flow measurement. Their fundamental ability to quantify direct mass flow, independent of varying fluid properties, establishes them as a cornerstone of process control.

While challenges like pressure drop or initial cost may arise, innovations in tube design and intelligent diagnostics continue to enhance their performance and value. The comprehensive data these meters provide empowers engineers to optimize processes, improve product quality, and bolster plant safety. For industries that demand the highest levels of reliability and precision, Coriolis technology isn't just a choice; it's the standard.
