How Ultrasonic Flow Meters Works: Transit Time & Doppler Explained

Ultrasonic flowmeters measure fluid flow using high-frequency sound waves. These meters send ultrasonic pulses through a pipe and compare how long they take to return in different directions.

Burak Metering, a leading ultrasonic flow meter manufacturer in India, delivers reliable and accurate flow measurement solutions for water, oil, chemical, and industrial systems.

This guide explains how ultrasonic flowmeters work and why they provide accurate flow data.

Working Principle

Ultrasonic flowmeters base their measurements on the behavior of sound waves in a moving fluid. They do not use moving parts and rarely obstruct the flow. Two major methods exist: transit-time (time-of-flight) and Doppler shift.

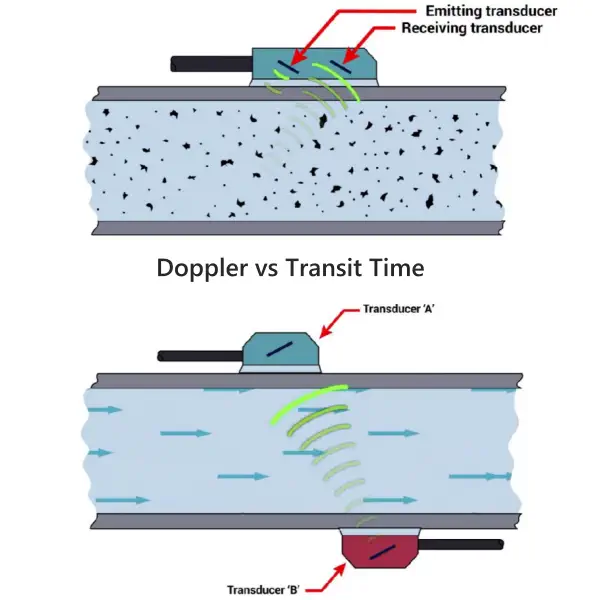

Transit-Time (Time-of-Flight) Method

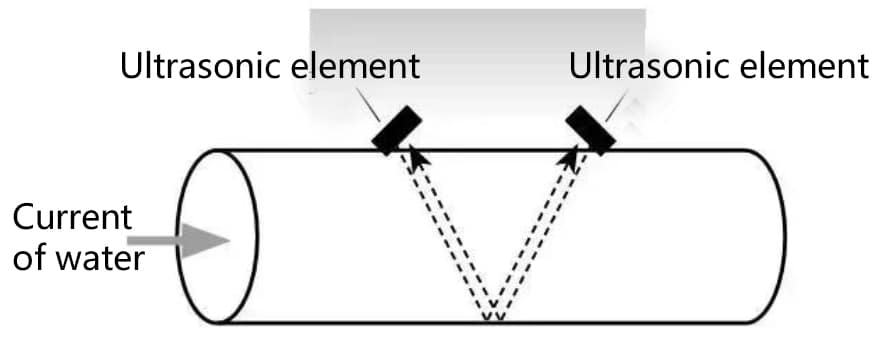

This method compares the time it takes for ultrasonic pulses to travel between two transducers. One pulse moves with the flow, and the other moves against it. When fluid flows, the sound wave with the flow reaches the opposite sensor faster than the one against the flow. The meter calculates the difference in these travel times and converts it into fluid velocity. The fluid velocity multiplied by the pipe area gives the volumetric flow.

In practice, transducers are placed on the pipe wall or inside the pipe. The instruments send pulses alternately upstream and downstream. A precise internal clock measures travel time differences and translates them to flow rate.

Burak Metering ultrasonic models use high-resolution timing electronics to improve accuracy.

Contact for free flow measurement evaluation.

Doppler Shift Method

In the Doppler method, the meter emits continuous ultrasonic waves into the fluid. These waves bounce off particles or bubbles carried by the flow. Moving particles cause a change in the frequency of the reflected signal. The flowmeter reads this frequency shift and calculates fluid velocity from it. Fluids with sufficient reflective particles allow this method to work well.

Data Interpretation

After measuring the time difference or frequency shift, the instrument calculates fluid velocity. Then it multiplies velocity by pipe cross-sectional area to compute flow rate.

Burak Metering ultrasonic flowmeters display real-time flow rate and totalized volume with clear outputs for automation systems.

Sensor Placement and Conditions

Sensor position influences accuracy. Straight pipe lengths before and after the meter help minimize flow profile distortion. Ultrasonic signals travel best in relatively clean fluids with low high-frequency attenuation.

Burak Metering offers models and support to match installations with conditions and fluid types.

Get a quote today for your flow measurement system.

Conclusion

Ultrasonic flowmeters accurately measure fluid flow by using sound waves and timing differences or frequency shifts. These instruments work without moving parts, reducing wear and maintenance needs.
